Agappe Clinical Chemistry Analyzers

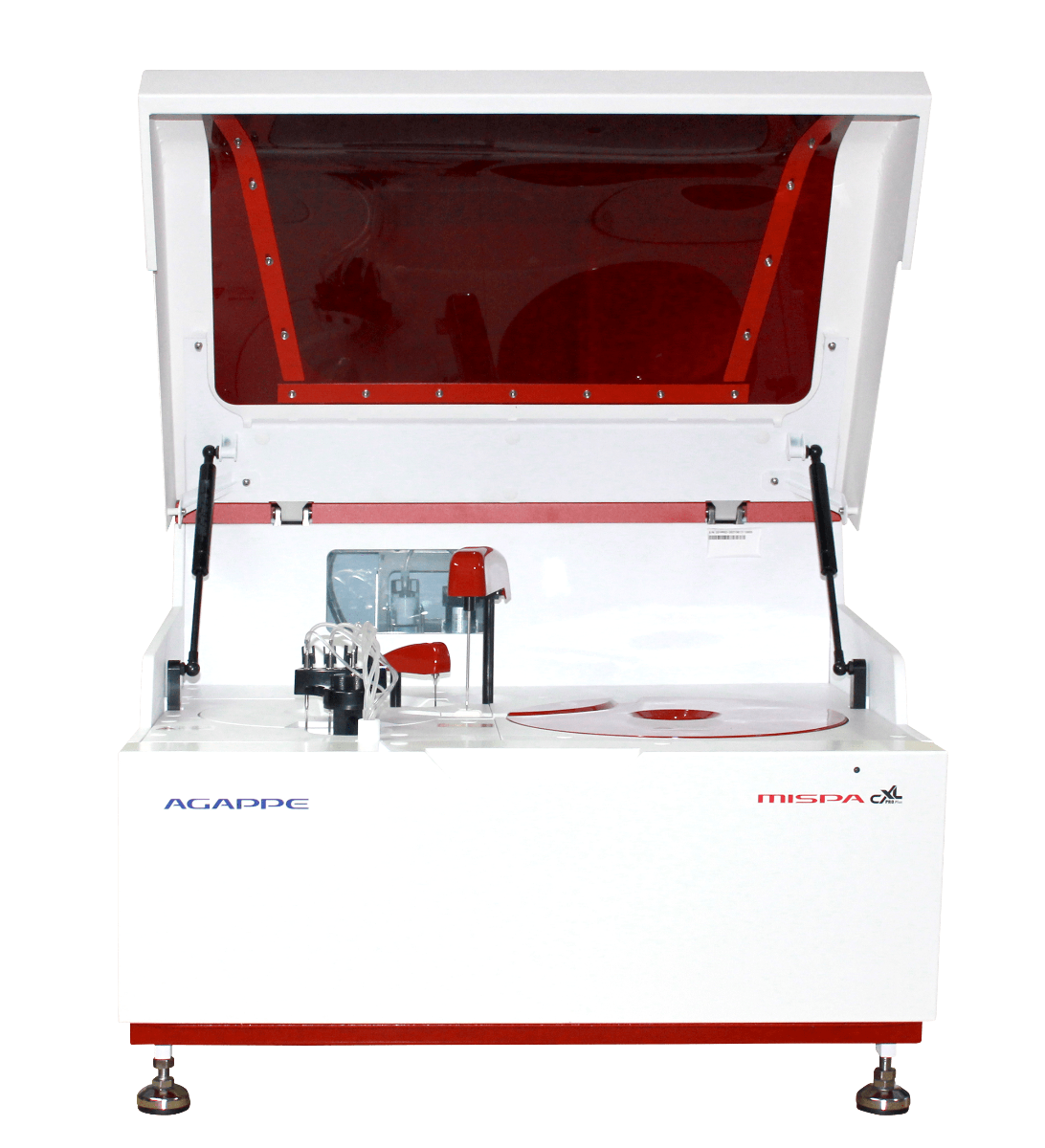

Agappe CXL Pro Plus Clinical Chemistry Analyzer
Mispa CXL Pro Plus Fully Automated Clinical Chemistry Analyzer
Mispa CXL Pro is a compact, fully automated random access clinical chemistry analyzer with photometric throughput of 240 tests per hour. HCFG (Holographic Concave Flat Field Grating) rear spectrophotometry reduces ambient light interferences, and photo-spot technology to reach super micro analysis. Mispa CXL Pro has an excellent on-board washing and cleaning system adopting 7 stops 11 steps, ensures minimum carryover and precise result delivery. Mispa CXL Pro is the best in the class with grating, mixing, washing and user-friendly classic features.
Key Specifications
| Measuring principle: | Spectrophotometry |
|---|---|
| Photometric throughput: | Up to 240 tests/hour |
| Methodology: | End point, Fixed time, Kinetic, Single & Dual reagent chemistries Mono & Bi chromatic, Linear & non-linear multipoint calibration |
| Light source: | Halogen - Tungsten lamp (12V/20W) |
| Wavelength: | 340nm, 380nm, 405nm, 450nm, 480nm, 505nm, 546nm, 570nm, 600nm, 660nm, 700nm, 750 or 800nm |
| Reagent/Sample tray: | Multi-functional reagent and sample carousel (40 positions) |
| Reaction cuvette: | 56 positions optical plastic cup |
| Water consumption: | 4L/hour |
| Dimensions (LxWxH): | 744x703x530 mm |
| Weight: | Approx. 100 k g |
Documents
Note: This is a quotation-request catalog. Pricing, lead time, and availability will be confirmed by our team after you submit your RFQ.
