Erba Mannheim Urinalysis Analyzers

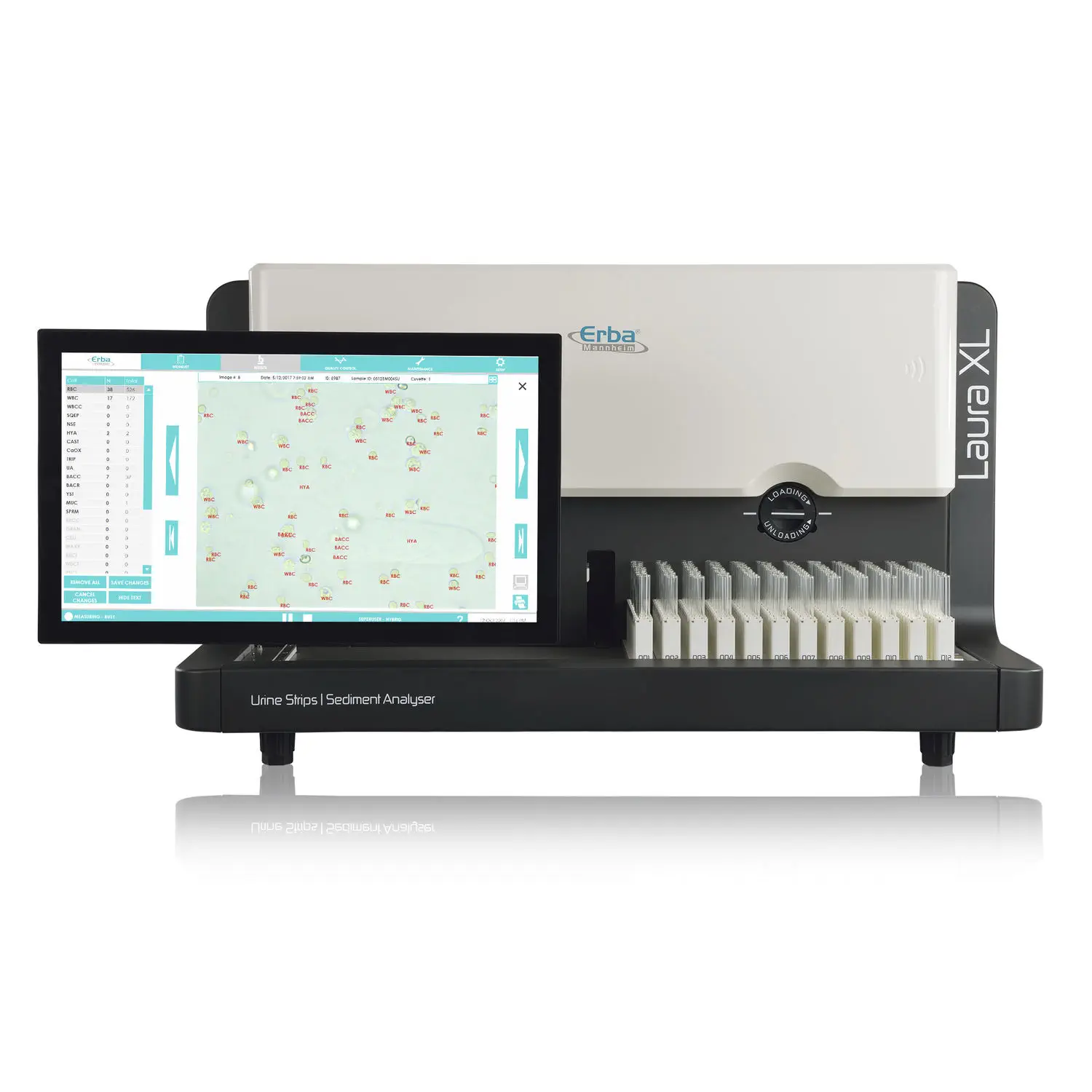

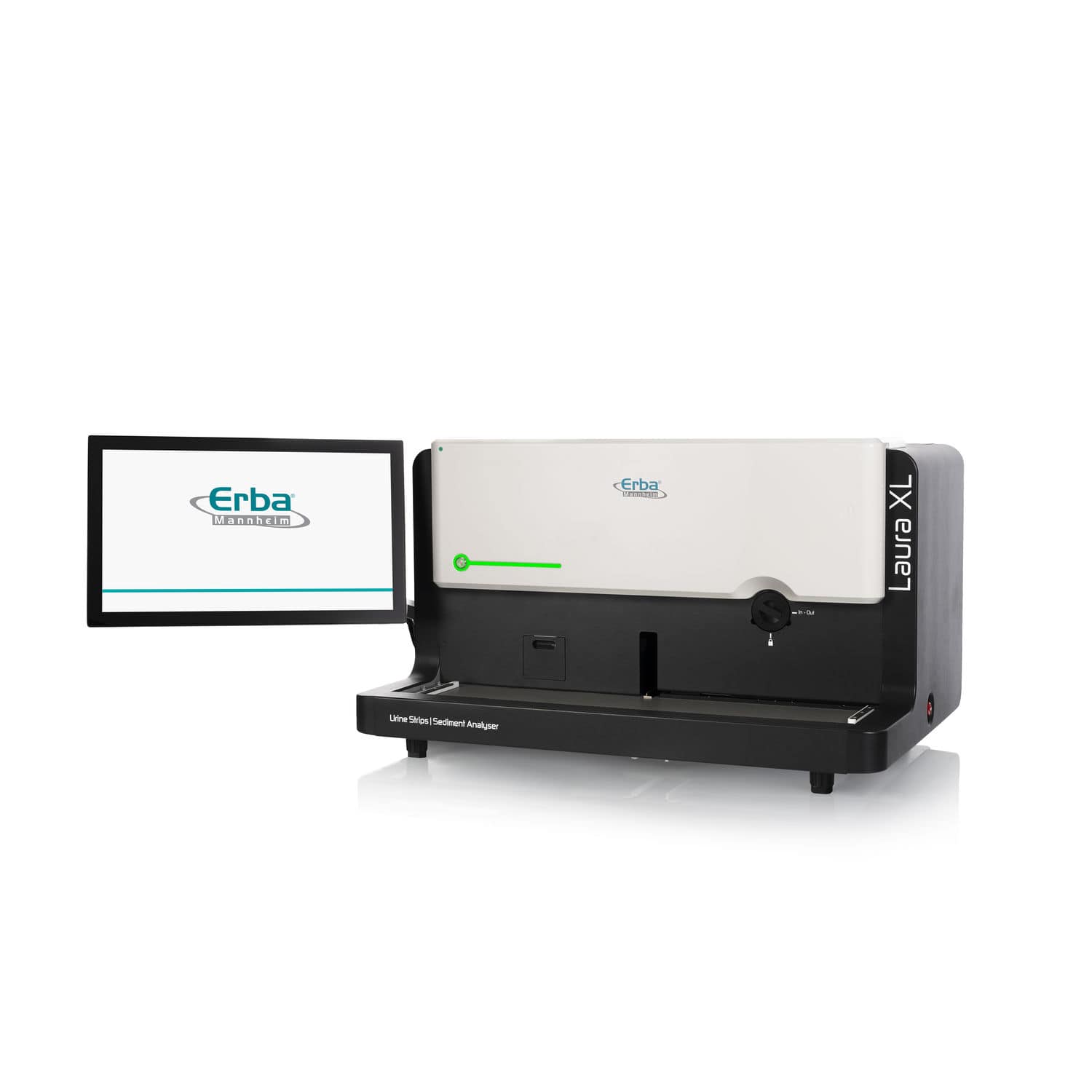

ERBA LAURA XL Urine Analyzer
ERBA LAURA XL Fully Automated Urine Analyzer
Combining urine strip reading and digital microscopy, the Laura XL delivers fully automated
processing of urine samples. From homogenisation and dispensing onto strips, to sedimentation
and result evaluation, it’s all done automatically, accurately and quickly. High resolution digital
images are generated reducing the need for additional evaluation by visual microscopy.
Key Specifications
| Measurement Principle: | Strip Chemistry: Reflectance Photometry / Sediment: Digital Microscopy |
|---|---|
| Throughput: | Chemistry only: 160 tests/h / Sediment only: 125 tests/h / Hybrid: 125 tests/h |
| Parameters (Chemistry): | SG, LEU, NIT, pH, PRO, GLU, KET, UBG, BIL, BLD, ASC, Color, Clarity |
| Parameters (Sediment): | RBC/nRBC, dRBCe, dRBCg, WBC, WBCc, SQEP, NSE, HYA, CASTS, SPRM, CaOX, TRIP, UA, CRYS, BACR, BACC, YST, MUC, UNCC |
| Loading Capacity: | 120 samples ( 10 tubes x 12 racks) |
| Sample Volume Required: | Primary tube 2 mL Micro tube 0,9 mL |
| Report unit: | N/?L; N/x ?L; Microscopy units, Total counts |
| Memory: | 500.000 results (incl. controls) |
| Dimensions: | Width 943 mm Depth 675 mm Height 563 mm Weight 70 kg |
| Working Conditions: | Temperature 16 – 30 °C Humidity 0 – 90 % RH (noncondensing) |
Documents
Note: This is a quotation-request catalog. Pricing, lead time, and availability will be confirmed by our team after you submit your RFQ.
